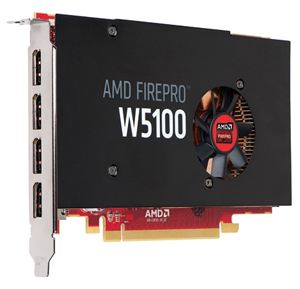

Featuring 4GB of GDDR5 memory and four display outputs, AMD FirePro™ W5100
professional graphics card allows users to tackle complex models, assemblies,
data sets and advanced visual effects with similar ease.
AMD FirePro™ graphics accelerators are carefully certified by AMD and
leading software vendors for use with the most widely used software
applications to help ensure stable, optimized performance, outstanding
productivity and unbeaten user experiences professionals demand.
Engineering and Design (CAD/CAE/AEC)
Digital Content Creation (DCC) & Digital Media
Geographical Information Systems (GIS) & Visualization
Oil & Gas
28nm Graphic Core Next (GCN) Architecture
The new 28nm GCN Architecture with more efficient process technology
puts more transistors in less space, enabling a dramatic increase in
processing power and graphics performance.
Each compute unit can execute instructions from multiple kernels at
Design for high-utilization, high-throughput, and multi-tasking
Dual geometry Engines for faster triangle ("primitive") processing
First GPU family to fully support OpenCL 1.2 and DirectX 11
AMD Eyefinity 2.0 Multi-Monitor Technology
The next generation of AMD Eyefinity multi-monitor control technology is
here, featuring all-new support for stereo 3D, universal bezel
compensation and brand new display configurations.
AMD Eyefinity 2.0 Enables:
Easy multi-display setup and customization
Virtually unlimited number of display devices
Stereo 3D-multi-display stereoscopic 3D support via DisplayPort 1.2
16K x 16K maximum display group resolution-output up to 268
Megapixels per GPU
Full 30-Bit Display Pipeline
With a full 30-bit display pipeline producing more than one billion
colors (10-bit per RGB component). The AMD FirePro™ is ideally suited
for applications that benefit from accurate color reproduction and
superior visual quality.
unique hardware-level function that automatically processes two 3D
"primitives" (triangles) per GPU clock cycle. The result is incredibly
fast geometry processing performance, ensuring smoother user interaction
when working with complex 3D design projects and real-time visualization
state of the art power management technology provides direct control
over GPU power usage. Applications enjoy ultimate performance with
dynamic clock optimization, while minimizing workstation energy usage .
AMD ZeroCore Power Technology
AMD ZeroCore Power Technology is the AMD exclusive innovation. Up to 95%
idle power reduction by shutting down GPU.
Quad HD Display Support (4K Support)
4K (4096 x 2160-pixel) support for ultra-high-resolution display devices
and advanced configurations through DisplayPort 1.2 and AMD Catalyst Pro
drivers ensures future-forward compatibility for advanced workflows.
Projector Overlap Support
Easily refine display alignment settings when configuring multiple, high
resolution display devices or projectors.
Discrete Digital Multi-Point Audio (DDMA)
DisplayPort 1.2 simultaneously outputs multiple, independent audio
Stretch display resolutions to prevent bezel interference and image
distortion when displaying a single large image across multiple
Partially Resident Texture (PRT)
Graphics memory behaves as a hardware-managed cache. Data can be
streamed in on demand.
Video Codec Engine (VCE)
Powerful, "fixed-function" multi-stream hardware dramatically improves
the performance of H.264 HD encoding for a range of applications and
Enables low latency, high-bandwidth peer-to-peer data transfers between
devices on host systems' PCI bus and AMD FirePro™ GPUs. Devices
supporting DirectGMA can write directly into the local memory of FirePro
GPUs -and vice versa. This functionality can dramatically reduce latency
and host system "overhead" as needed for real-time broadcasting and
other types of high-speed communications applications.
HydraVision to manage desktop displays and workspaces in multi-display
Explicitly set the behavior of pop-up windows and dialogs in
different applications though Desktop Manager.
Provide multiple layers of the desktop workspace through Multi
Restrict application window placement across multiple desktops
Display Output Post Processing
Display Output Post Processing, or D.O.P.P., provides software
applications with access to a FirePro GPU's framebuffer before content
reaches the card's signal output stage. This functionality enables ISVs
and OEMs with added flexibility and performance they can leverage to
create new, exciting and innovative methods for creating and displaying
AMD FirePro™ products incorporate a unique AutoDetect technology. As
users open new 3D applications, or move between them, optimized AMD
FirePro™ graphics driver settings are automatically configured for
maximum performance, no matter what the user's workflow demands.
Professional and Customized Warranty and Support
Long Product Life Cycle: 3+ Years
3-Year Limited Warranty
E-Mail Access to dedicated Technical Support
Advanced Parts Replacement Option
